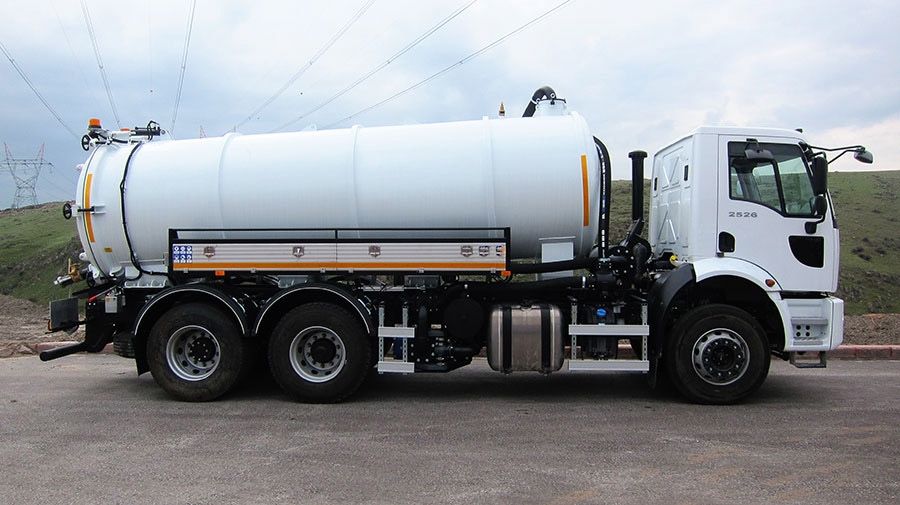

Standard TYPE VACUUM TRUCKS
They are equipment specially designed to suck and transfer waste water and wastes accumulated in phoseptic pits and channels. The air in the tank is vacuumed, the wastewater is sucked into the tank and the compressed air is fed into the tank, and the waste water is discharged by using the vacuum pump. The vacuum pump is powered by the power take-off which is coupled to the vehicle gearbox, and is controlled by a button in the driver's cab.
Our equipment is designed in accordance with the needs of our customers and is produced in the best quality and the most suitable features to meet the needs.
| Vehicle Carrying Capacity |
At least 7500 kg |
| Tank Capacity |
3000 Lt |
| Tank Material |
Carbon steel |
| Vacuum Pump Capacity |
300-850 m3/Hour |
| Opening the Back Cover |
Mechanical with Hand Pump |
| Rear Cover Locks |
Mechanical flywheel type |
| Valves |
Mechanical Discharge and Intake Valves |
| Cabinets |
On both sides of the tank along the tank |
| Vehicle Carrying Capacity |
At least 15000 kg |
| Tank Capacity |
6000 Lt |
| Tank Material |
Carbon steel |
| Vacuum Pump Capacity |
400-2700 m3/Hour |
| Opening the Back Cover |
Hydraulic |
| Rear Cover Locks |
Mechanical flywheel type |
| Valves |
4" Mechanical suction valve 6"" pneumatic discharge |
| Cabinets |
On both sides of the tank along the tank |
| Vehicle Carrying Capacity |
At least 18000 kg |
| Tank Capacity |
8000 Lt |
| Tank Material |
Carbon steel |
| Vacuum Pump Capacity |
1500 m3/Hour |
| Opening the Back Cover |
Mechanical with Hand Pump |
| Rear Cover Locks |
Mechanical flywheel type |
| Valves |
4" Mechanical suction valve 6"" pneumatic discharge |
| Cabinets |
On both sides of the tank along the tank |
| Vehicle Carrying Capacity |
At least 25000 kg |
| Tank Capacity |
13000 Lt |
| Tank Material |
Carbon steel |
| Vacuum Pump Capacity |
700-6500 m3/Hour |
| Opening the Back Cover |
Mechanical with Hand Pump |
| Rear Cover Locks |
Mechanical flywheel type |
| Valves |
4" Mechanical suction valve 6"" pneumatic discharge |
| Cabinets |
On both sides of the tank along the tank |
| Vehicle Carrying Capacity |
At least 25000 kg |
| Splitted Tank |
13000 Lt |
| Clean Water Capacity |
5000 Lt |
| Waste Water Capacity |
8000 Lt |
| Tank Material |
Carbon steel |
| Vacuum Pump Capacity |
1500-4500 m3/Hour |
| High Pressure Pump Capacity |
330-410 lpm at 155-230 bar |
| Opening the Back Cover |
Hydraulic |
| Main Hose Drum |
120 mt Long 1" Hose |
| Auxiliary Hose Drum |
1/2"-60 mt Manual Winding System |
| Rear Cover Locks |
Hydraulic |
| Valves |
4" Manuel operated suction and 6" pneumatic discharge valves |
| Cabinets |
On both sides of the tank along the tank |
| Vehicle Carrying Capacity |
At least 32000 kg |
| Splitted Tank |
15000 Lt |
| Clean Water Capacity |
6000 Lt |
| Waste Water Capacity |
9000 Lt |
| Tank Material |
Carbon steel |
| Vacuum Pump Capacity |
2400-9500 m3/Hour |
| High Pressure Pump Capacity |
350-480 lpm at 170-230 bar |
| Opening the Back Cover |
Hydraulic |
| Main Hose Drum |
120 mt Long 1" Hose |
| Auxiliary Hose Drum |
1/2"-60 mt Manual Winding System |
| Rear Cover Locks |
Hydraulic |
| Valves |
6" manuel operated suction and 6" pneumatic discharge valves |
| Cabinets |
On both sides of the tank along the tank |
