Fire Fighting Vehicle

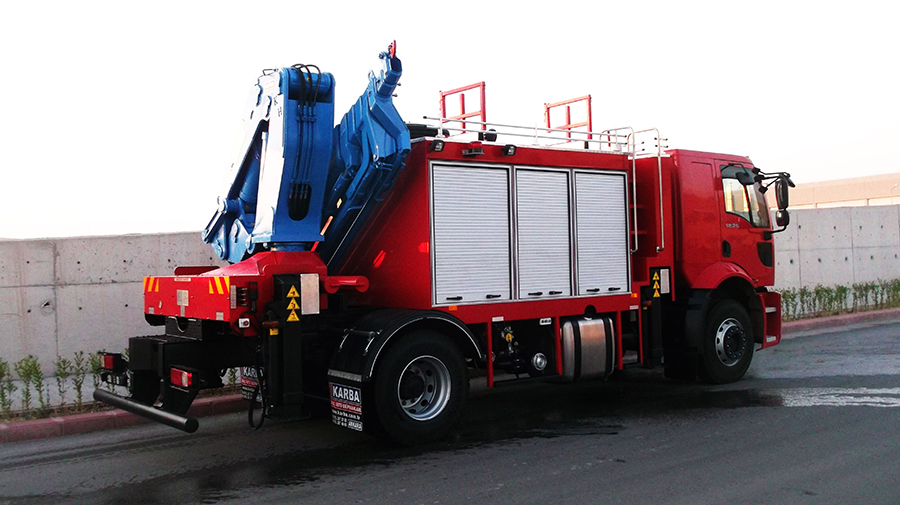

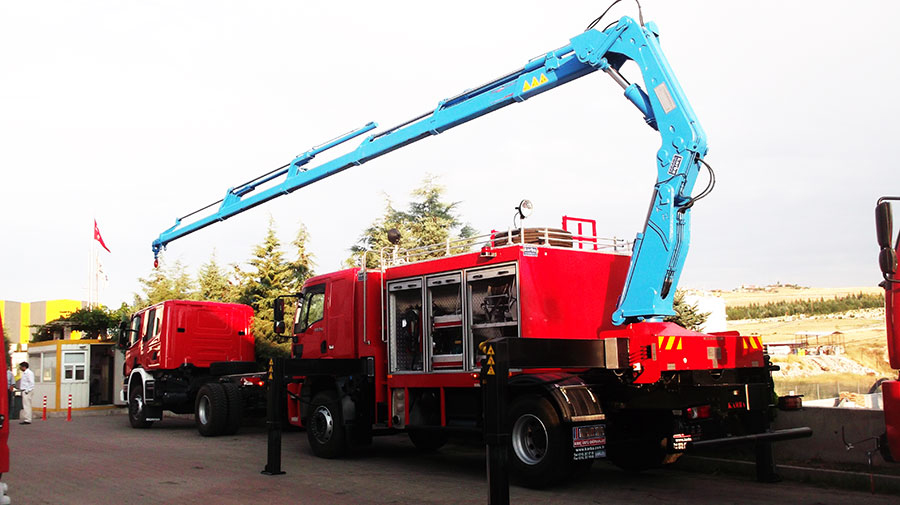

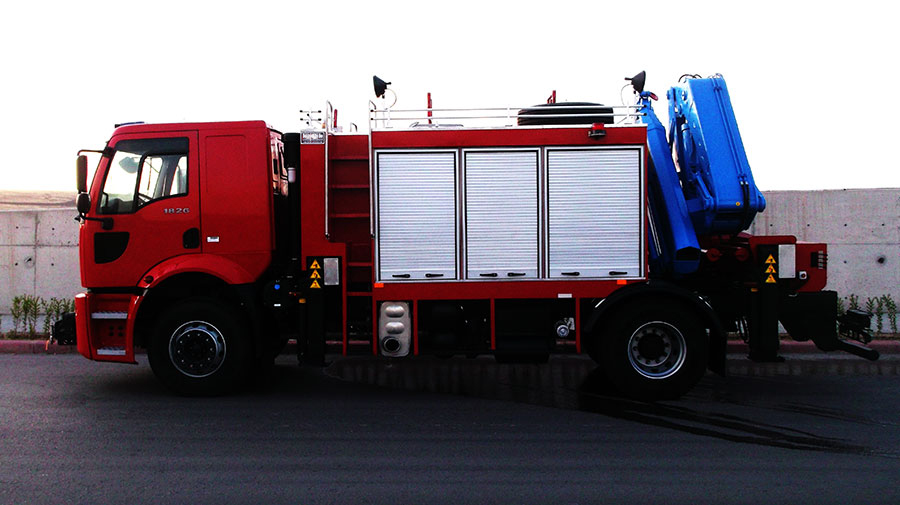

Rather than fire intervention these vehicles are manufactured with the aim of saving people who are not able to move due to injury during a natural disaster, mainly accidents.

RESCUE VEHICLES

The most important part of a fire brigade. They work by centrifugal force. They are molded from high resistant aluminum alloy. Their designation is normal pressure for up 20 bar, high pressure up to 40 bar. Normal pressure models have delivery rates 1500,2000,3000,4000 lpm where high pressure models have delivery rates up to 250 lpm at 40 bar

Foam rationing system is also coupled to pump. Generally it works between %1-%6 rates. The water/foam solution is delivered to fire by a water/foam monitor. Monitors have 360 degree horizontal movement and 120 degree vertical movement. The nozzle on monitor have jet and spray patterns.

Standard Accessories
- 1 unit Suction Strainer
- 2 units 4" Suction Hose
- 2 units Branchpipes
- 2 units 2" x 20m Fire Hose
- 2 units 2.5" x 20m Fire Hose
- Telescopic Light Mast
- 2 units Union Wrench
- Portable Ladder
- Front Bumper Winch

Optional Accessories
- Telescopic Projector
- Additional First Intervention Hose Reel
- Remote Controlled Monitor
- Bumper Turret
- Dry Chemical Powder Unit
- Firefighting Equipment
- Rescue Equipment
- Front Watering Bar
- Under Vehicle Cooling System
- Foam Nozzles
- Portable Ladder Lowering System

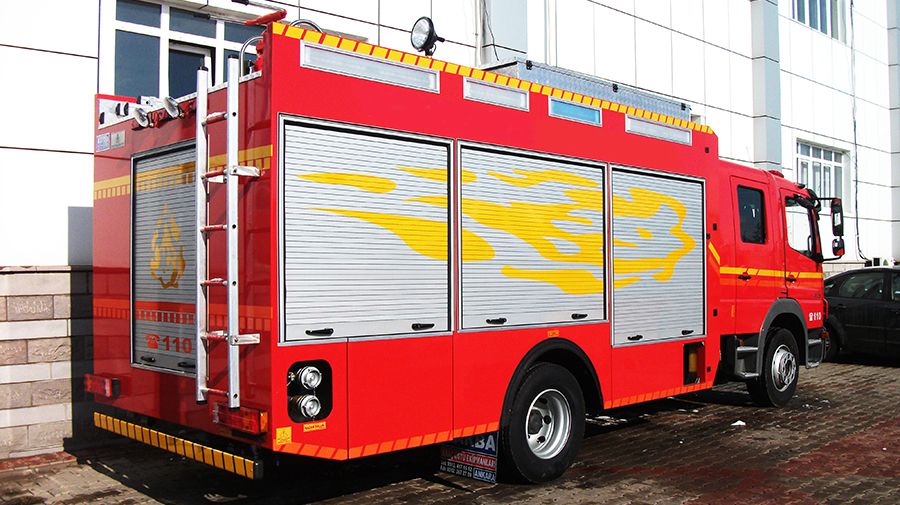

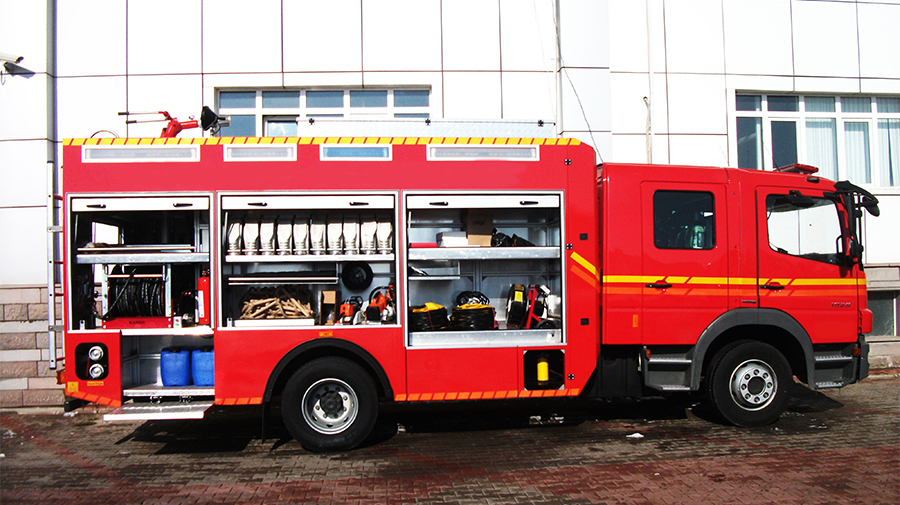

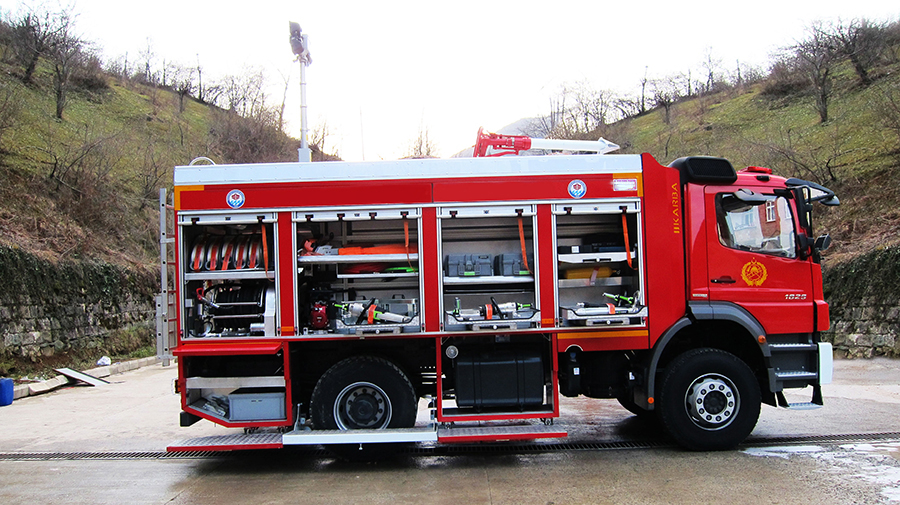

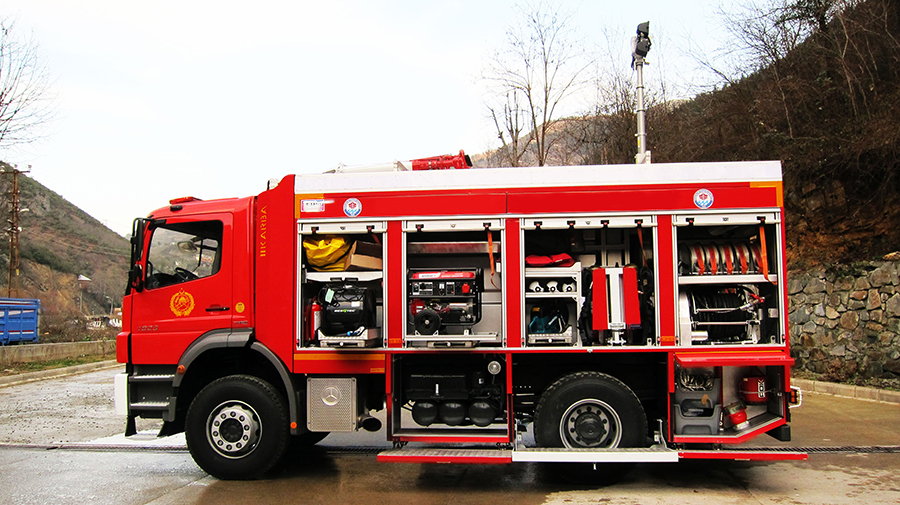

Type	First Intervention and Rescue Vehicle
Chassis	At least 7.500 kg 4x2
Bodywork	Modular / Monoblock / Aluminum Custom Panel
Water tank	2.000 - 3.000 liters stainless steel
Foam Tank	150 liters stainless steel
Pump Capacity (Lt / min) Drive Foam Rationing	KRB 1500 N 1.500 l/m at 10 bar PTO Around the pump 3% - 6%	KRB 2000 N 2.000 l/m at 10 bar PTO Around the pump 3% - 6%	KRB 3000 NH 3.000 l/m at 10 bar 250 l/m at 40 bar PTO Around the pump 3% - 6%
Monitor Capacity (Lt / min) Control	KRB - 1200 1200 Manual	KRB - 1600 1600 Manual	KRB - 2400 2400 Manual
Illumination & Warning	American Light Bar with Siren Locker Illumination 2 units Fixed Projectors
First Responders Hose Reel Control Hose Nozzle	1 unit Manual Unwinding – Electrical Rewinding 1" x 50m Jet / Fog Pistol
Accessories	Standard Accessories Available

Type	First Intervention and Rescue Vehicle
Chassis	At least 15.000 kg 4x2 - 4x4
Bodywork	Modular / Monoblock / Aluminum Custom Panel
Water tank	2.000 - 4.000 liters stainless steel
Foam Tank	300 liters stainless steel
Pump Capacity (Lt / min) Drive Foam Rationing	KRB 1500 N 1.500 l/m at 10 bar PTO Around the pump 3% - 6%	KRB 2000 N 2.000 l/m at 10 bar PTO Around the pump 3% - 6%	KRB 2000 NH 2.000 l/m at 10 bar 250 l/m at 40 bar PTO Around the pump 3% - 6%	KRB 3000 NH .000 l/m at 10 bar 250 l/m at 40 bar PTO Around the pump 3% - 6%
Monitor Capacity (Lt / min) Control	KRB - 1200 1200 Manual	KRB - 1600 1600 Manual	KRB - 1600 1600 Manual	KRB - 1600 1600 Manual
Lighting Warning	American Light Bar with Siren Locker Illumination 2 units Fixed Projectors
First Responders Hose Reel Control Hose Nozzle	1 unit Manual Unwinding – Electrical Rewinding 1" x 50m Jet / Fog Pistol
Accessories	Standard Accessories Available

Type	First Intervention and Rescue Vehicle
Chassis	At least 18.000 kg 4x2 - 4x4
Bodywork	Modular / Monoblock / Aluminum Custom Panel
Water tank	3.000–5.000 liters stainless steel
Foam Tank	300 liters stainless steel
Pump Capacity (Lt / min) Drive Foam Rationing	KRB 3000 NH 3.000 l/m at 10 bar 250 l/m at 40 bar PTO Around the pump 3% - 6%	KRB 4000 N 4.000 l/m at 10 bar PTO Around the pump 3% - 6%
Monitor Capacity (Lt / min) Control	KRB - 2400 2400 Manual	KRB - 2400 2400 Manual
Lighting Warning	American Light Bar with Siren Locker Illumination 2 units Fixed Projectors
First Responders Hose Reel Control Hose Nozzle	1 unit Manual Unwinding – Electrical Rewinding 1" x 50m Jet / Fog Pistol
Accessories	Standard Accessories Available
